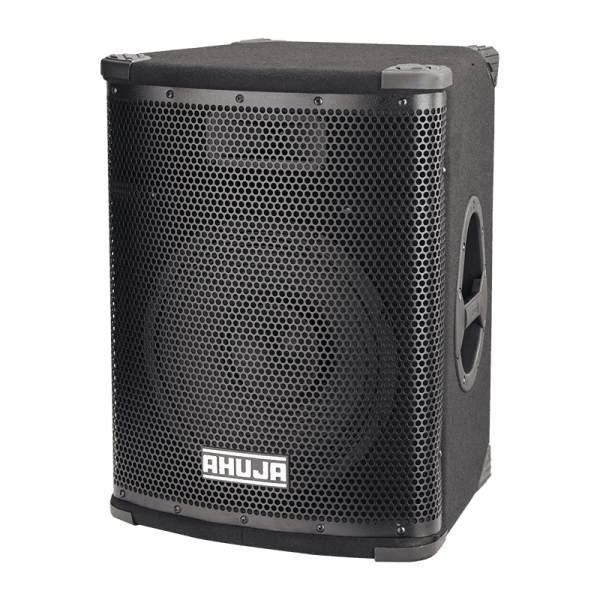

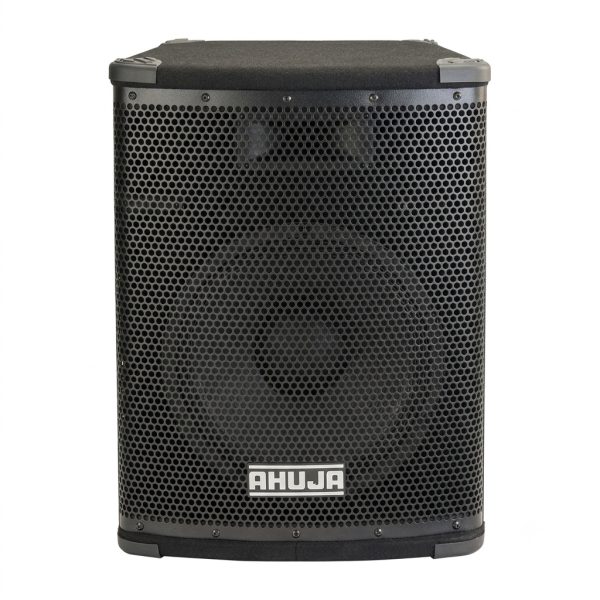

Ahuja SRX-120DXM 100W Professional Two-Way PA Speaker
The Ahuja SRX-120DXM is a professional two-way public address speaker designed for clear speech reproduction and music playback in small PA applications. With a 100W RMS power rating, it is suitable for presentations, meetings, small events and compatible sound reinforcement setups.
The speaker combines a 12-inch full-range dual-cone driver with a piezo horn tweeter to reproduce a broad range of audio frequencies. Its rugged trapezoidal enclosure is constructed from 18 mm board and covered with carpet for durability. A protective front grille, ergonomic carrying handles and a stand-mount adaptor support convenient transport and installation.
Key Features
- 100W RMS Power Handling: Designed for dependable audio output in small PA applications.
- Two-Way Speaker Configuration: Combines a 12-inch dual-cone driver and piezo horn tweeter.
- Wide Frequency Response: Reproduces frequencies from 55Hz to 20kHz.
- High Sensitivity: Rated at 97dB at 1W/1m.
- Rugged Cabinet: 18 mm board construction with carpet covering.
- Easy Portability: Ergonomic handles help with carrying and positioning.
- Stand-Mount Support: Integrated adaptor allows mounting on a compatible speaker stand.
- Protective Front Grille: Helps protect the speaker components during normal use.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ahuja |
| Model | SRX-120DXM |
| Product Type | Professional PA Cabinet Speaker |
| Power Rating | 100W RMS / 200W Programme |
| Configuration | Two-Way |
| Frequency Response | 55Hz–20,000Hz |
| Low-Frequency Driver | 1 × 304.8 mm (12-inch) full-range dual-cone speaker |
| Voice Coil Diameter | 38.1 mm (1.5 inches) |
| High-Frequency Unit | Piezo horn tweeter, 50.8 × 127 mm (2 × 5 inches) |
| Sensitivity | 97dB (1W/1m) |
| Maximum Rated SPL | 117dB |
| Nominal Impedance | 8 Ohms |
| Enclosure | Sealed, trapezoidal cabinet with carpet covering |
| Input Connectors | 6.35 mm (1/4-inch) phone jack and terminal strip |
| Dimensions | W410 × H530 × D380 mm |
| Weight | Approximately 15.4 kg |
Applications
- Small events and public gatherings
- Meetings, seminars and presentations
- Schools, colleges and training centres
- Speech reinforcement and announcements
- Music playback with a compatible PA system
- Small venues and indoor sound reinforcement
Why Choose Ahuja SRX-120DXM?
The Ahuja SRX-120DXM combines 100W RMS power handling, a 12-inch driver and a piezo horn tweeter in a rugged, portable cabinet. Its stand-mount adaptor and carrying handles make it a practical choice for users who need a transportable speaker for presentations, events and small PA setups.
Compatibility Note: This is a passive speaker and requires a compatible external amplifier. Use an amplifier suitable for an 8-ohm speaker load, and follow the manufacturer’s power recommendations.
“`
