Canon imageFORMULA DR-M1060II A3 High-Speed Document Scanner for Business & Professional Use – Full Product Details

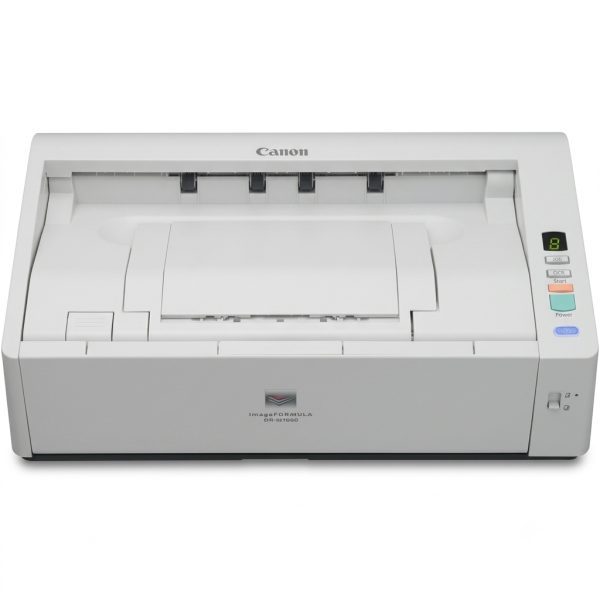

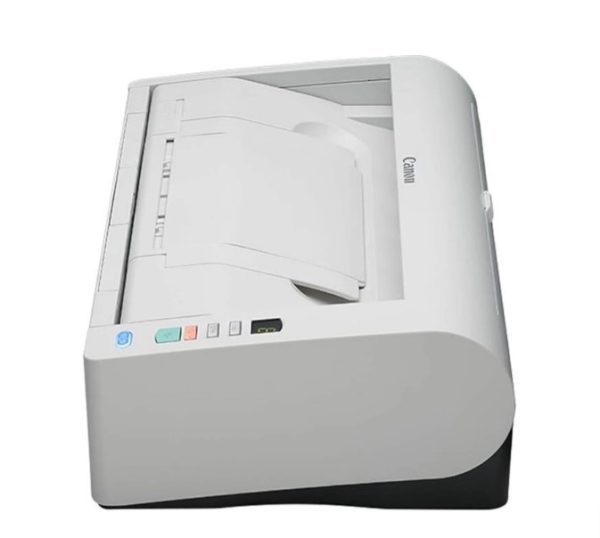

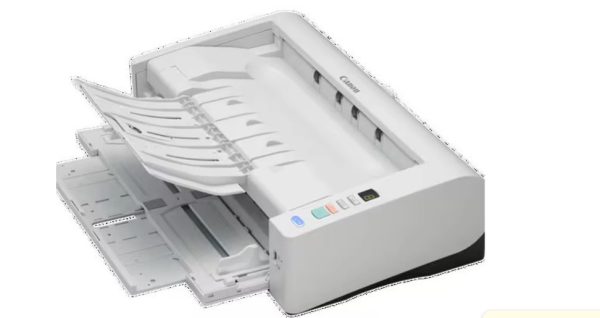

The Canon imageFORMULA DR-M1060II is a high-speed A3 desktop document scanner designed for business, professional and high-volume document digitisation. Its compact design and efficient U-turn paper path make it suitable for offices where fast scanning and space-efficient operation are important.
With scanning speeds of up to 60 ppm in simplex and 120 ipm in duplex, a 600 dpi optical resolution and an 80-sheet automatic document feeder, the DR-M1060II is designed to handle demanding document workflows. It supports A3-size documents, business cards, ID cards and long documents up to 3,000 mm in Long Document mode.
Product Specifications
| Canon imageFORMULA DR-M1060II Specifications | |
|---|---|
| Product Type | Desktop Sheet-Fed Document Scanner |
| Model | imageFORMULA DR-M1060II |
| Format | A3 |
| Function | Scan Only |
| Scanning Type | Simplex & Duplex |
| Scanning Element | Contact Image Sensor (CIS) |
| Light Source | LED |
| Optical Resolution | 600 dpi |
| Output Resolution | 100, 150, 200, 240, 300, 400, 600 dpi |
| Scanning Speed – Greyscale | 60 ppm Simplex / 120 ipm Duplex at 200 or 300 dpi |
| Scanning Speed – Colour | 60 ppm / 120 ipm at 200 dpi; 40 ppm / 80 ipm at 300 dpi |
| ADF Capacity | 80 sheets |
| Maximum Document Width | 300 mm |
| Document Length | 70 to 432 mm |
| Long Document Mode | Up to 3,000 mm |
| Business Card Support | Supported |
| ISO Card Support | 54 × 86 mm |
| Scanning Modes | Black & White, Error Diffusion, 256-Level Greyscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Colour |
| Special Features | Folio Scanning, Double Feed Release, 2D / Barcode Support |
| Interface | USB 2.0 |
| Software / Drivers | ISIS / TWAIN / WIA Drivers, CaptureOnTouch |
| Suggested Daily Volume | 7,500 to 13,000 scans |
| Power Consumption | 32.5 W Maximum Scanning |
| Sleep Mode Power | 1.9 W |
| Dimensions – Trays Closed | 424 × 246 × 120 mm |
| Dimensions – Trays Opened | 424 × 440 × 210 mm |
| Weight | Approx. 6.1 kg without AC adapter |
| Operating Temperature | 10 to 32.5°C |
| Operating Humidity | 20 to 80% |
| Optional Accessories | Flatbed Scanner Unit 102, Flatbed Scanner Unit 201, Exchange Roller Kit |
About This Scanner
- A3 high-speed desktop document scanner for professional environments
- Simplex and automatic duplex scanning
- Up to 60 ppm simplex and 120 ipm duplex scanning
- 80-sheet automatic document feeder for batch scanning
- 600 dpi optical resolution for detailed document capture
- Supports A3 documents, business cards and ISO cards
- Long Document mode supports documents up to 3,000 mm
- USB 2.0 connectivity for computer-based scanning
Key Features of Canon DR-M1060II
- A3 Scanning: Designed to scan documents up to A3 size, making it suitable for professional documents, drawings and large-format office paperwork.
- High-Speed Duplex Scanning: Scans up to 60 pages per minute simplex and 120 images per minute duplex in supported modes.
- 80-Sheet ADF: The automatic document feeder supports efficient batch scanning of multiple documents.
- 600 dpi Optical Resolution: Provides detailed digital capture for business records and professional document workflows.

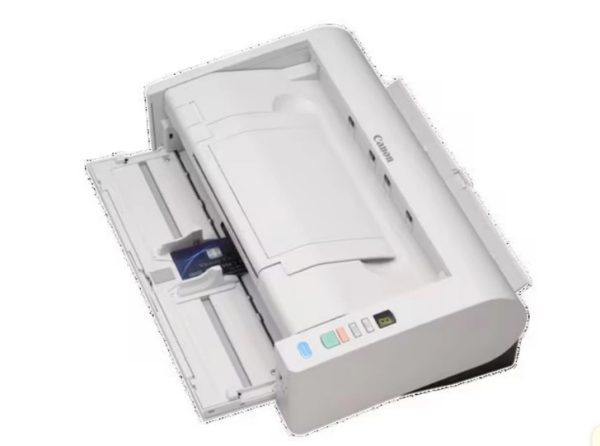

- Wide Media Handling: Supports paper, business cards and ISO-standard cards with dedicated handling options.
- Long Document Scanning: Long Document mode enables scanning of documents up to 3,000 mm in length.
- Folio Scanning: Supports folded documents for flexible document digitisation.
- Double Feed Release: Helps manage double-feed situations during scanning workflows.
- 2D and Barcode Support: Supports barcode and 2D-code related document-processing workflows.
Performance & Productivity
The Canon imageFORMULA DR-M1060II is engineered for high-volume mixed-batch scanning in professional environments. Its fast duplex scanning capability and 80-sheet ADF help reduce manual document handling and improve productivity when digitising large quantities of paper records.

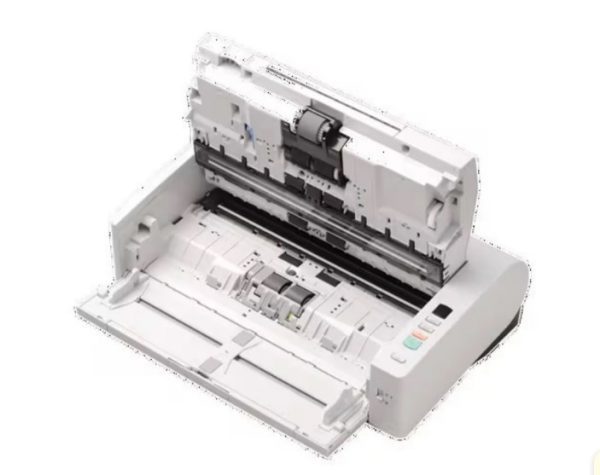

The scanner’s compact U-turn paper path enables front-access operation while helping save countertop space. With advanced image-processing modes, flexible media handling and CaptureOnTouch software, it is well suited to structured document capture and digital archiving workflows.
Best Suitable For
- Corporate offices and professional workgroups
- Document management departments
- Government and institutional offices
- Legal and financial documentation
- Accounting and administrative departments
- Engineering and A3 document workflows
- Records management and digital archiving
- High-volume professional document scanning
Why Choose Canon DR-M1060II?
- A3-capable professional document scanner
- Up to 60 ppm simplex and 120 ipm duplex scanning
- Large 80-sheet automatic document feeder
- 600 dpi optical resolution
- Long Document mode up to 3,000 mm
- Folio, business card and card scanning support
- Advanced text enhancement and image-processing modes
- USB 2.0 connectivity with ISIS, TWAIN and WIA support
- Suggested daily volume of 7,500 to 13,000 scans
Canon DR-M1060II – Professional A3 Document Scanning Solution
The Canon imageFORMULA DR-M1060II is a professional A3 document scanner designed for businesses and organisations that require fast, reliable and flexible document digitisation. With high-speed duplex scanning, an 80-sheet ADF, 600 dpi optical resolution, long-document support and advanced document-processing features, it provides an efficient solution for demanding professional scanning environments.
