Milestone MPX3232-NT Professional Audio Video Matrix Switcher for AV Integration

Description

Milestone MPX3232-NT Professional Audio Video Matrix Switcher – Full Product Details

The Milestone MPX3232-NT Professional Audio Video Matrix Switcher is designed for professional audiovisual integration projects that require flexible routing and management of multiple audio and video sources across multiple displays. Its modular architecture enables system integrators to configure compatible input and output cards according to the requirements of a particular AV installation.

Designed for environments such as corporate boardrooms, conference rooms, control rooms, training facilities, and professional video distribution systems, the MPX3232-NT supports cross-point switching, allowing compatible input sources to be routed to selected output destinations. Its modular design supports a range of signal interfaces, including HDMI, HDBaseT, DVI, VGA, optical and SDI, depending on the cards installed.

The system supports 4K signal handling with compatible input and output cards and offers control options for professional AV environments. With configurable connectivity and centralised signal routing, the Milestone MPX3232-NT can help simplify complex AV installations and provide flexibility for changing integration requirements.

Milestone MPX3232-NT Product Specifications

Note: Specifications such as the exact number of active inputs and outputs, supported resolution on each port, control interfaces, chassis size and power requirements depend on the MPX3232-NT configuration. Confirm the final bill of materials with the supplier before ordering.

About the Milestone MPX3232-NT Matrix Switcher

The Milestone MPX3232-NT is designed to serve as a central routing component in professional AV systems. Rather than relying on a fixed set of connectors, its modular architecture allows compatible signal cards to be selected for the requirements of the installation.

• Modular AV architecture: Configure compatible input and output cards for different signal formats.
• Flexible source routing: Route supported input sources to selected output destinations.
• Professional 4K workflows: Handle compatible 4K signals with suitable cards and connected equipment.
• Multiple interface options: Support a variety of digital and legacy AV connections, depending on configuration.
• Centralised control: Manage switching through supported front-panel and remote-control interfaces.
• Integration flexibility: Adapt the system to the connectivity needs of a professional AV installation.

Key Features of the Milestone MPX3232-NT Professional AV Matrix Switcher

1. Modular 32×32 Matrix Architecture

The MPX3232-NT is designed for larger AV systems where multiple sources need to be distributed to multiple displays. Its modular design allows compatible input and output cards to be selected for the desired system layout. The actual active input and output capacity depends on the installed configuration.

2. Flexible Audio and Video Signal Routing

Cross-point switching enables compatible inputs to be assigned to selected outputs. This flexibility is useful in environments where different computers, media players, presentation systems and other AV sources must be routed to different displays or destinations.

3. Support for Multiple Signal Interfaces

Depending on the installed cards, the system can accommodate signal formats such as HDMI, HDBaseT, DVI, VGA, optical and SDI. This flexibility can help integrators bring different AV equipment into a centralised distribution system.

4. 4K Video Signal Handling

The MPX3232-NT platform supports compatible 4K signal workflows. The maximum resolution, refresh rate, colour format and other video capabilities depend on the input and output cards, cable infrastructure and connected devices. Verify these requirements when designing a 4K installation.

5. Professional System Control

Supported control methods include front-panel operation and RS-232, with TCP/IP control available as an option depending on configuration. These interfaces can help integrate the matrix switcher into a wider AV control system.

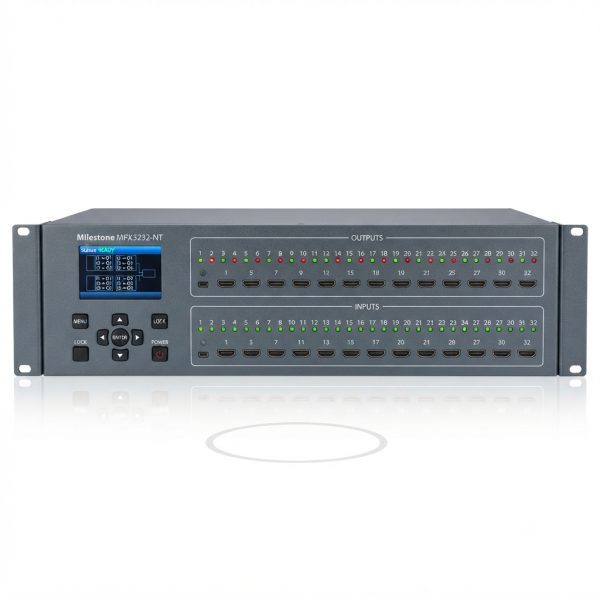

6. Front-Panel LCD and Buttons

The front-panel interface provides local access to device status and switching controls. This is useful for installation, commissioning and maintenance when direct access to the unit is required.

7. Scalable AV Integration

The modular approach allows system designers to select compatible interfaces based on the equipment already installed and the needs of a project. This can make the platform suitable for complex installations that combine multiple types of AV source and display.

Applications of the Milestone MPX3232-NT

• Corporate boardrooms: Route presentation and conferencing sources to selected displays.
• Conference rooms: Support flexible AV signal distribution for meetings and presentations.
• Control rooms: Distribute compatible video sources to monitoring displays and video walls.
• Training facilities: Manage multiple presentation sources and display destinations.
• Professional video distribution: Centralise routing for compatible AV equipment.
• Large-screen installations: Support suitable multi-display and video-wall workflows when paired with compatible cards and equipment.
• AV integration projects: Connect compatible digital and legacy signal sources in a configurable system.

Connectivity and System Compatibility

Before integrating the Milestone MPX3232-NT, confirm the signal type and specifications of every source and display. Check connector types, supported resolutions, refresh rates, HDCP requirements, cable distances and any need for signal conversion or extension.

Because the matrix switcher is modular, not every interface is necessarily included in the base chassis. The required input cards, output cards, control options and accessories should be specified for the intended installation.

Installation and Configuration

Professional installation should include planning the input and output layout, confirming card compatibility, assigning routing requirements and testing each connected source and display. For systems using 4K signals or long-distance transmission, verify the complete signal path, including the source, matrix cards, cables, receivers and display.

For reliable operation, use the manufacturer’s installation documentation and confirm power, ventilation, rack space and control-system requirements for the exact supplied configuration.

Why Choose the Milestone MPX3232-NT Professional Audio Video Matrix Switcher?

The Milestone MPX3232-NT is a flexible option for professional AV projects that require centralised routing across multiple sources and destinations. Its modular architecture, range of compatible signal interfaces and professional control options make it suitable for integration into meeting rooms, control environments and video distribution systems.

By selecting the appropriate input and output cards for the project, integrators can design an AV routing solution around the required connections and signal formats. This helps support complex installations while keeping source routing and system management centralised.

Milestone MPX3232-NT Professional Audio Video Matrix Switcher for AV Integration

The Milestone MPX3232-NT Professional Audio Video Matrix Switcher is designed for flexible audio-video signal routing in corporate, commercial and professional AV environments. Its modular design supports compatible interface cards, cross-point switching, 4K signal workflows and integration with supported control systems.

Whether used in a boardroom, conference facility, control room or video distribution project, the MPX3232-NT provides a configurable foundation for managing multiple AV sources and display destinations.

Ordering note: Confirm the installed input/output cards, total active channels, supported 4K formats, control options and included accessories with the supplier before purchasing or publishing final technical specifications.
