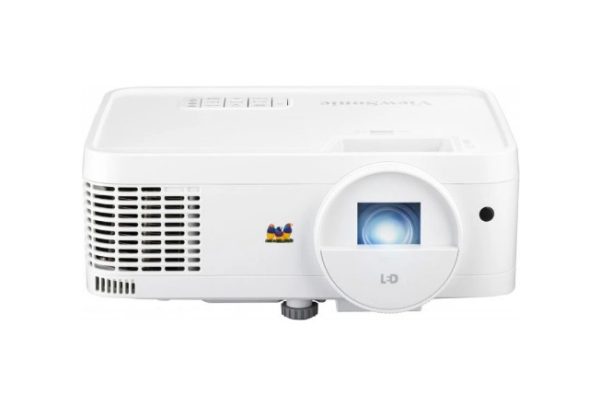

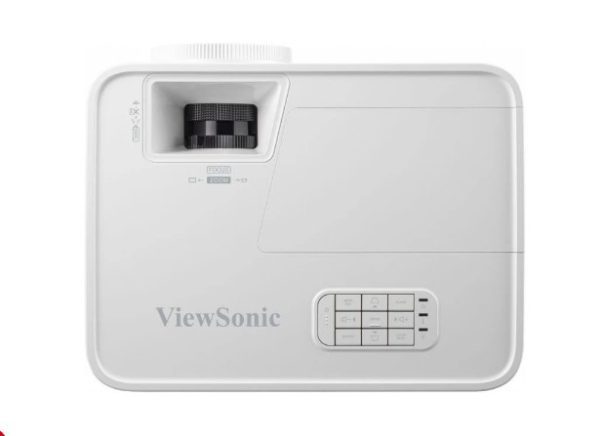

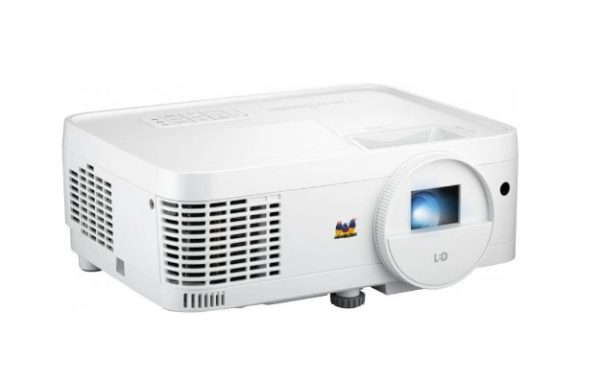

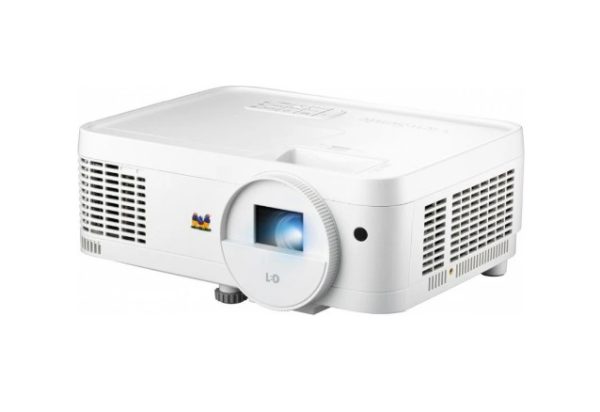

ViewSonic LS510WP WXGA LED Projector for Business, Classroom & Office Presentation – Full Product Details
The ViewSonic LS510WP is a high-brightness WXGA LED projector designed for business meetings, classrooms, offices and professional presentation environments. With 4200 ANSI lumens brightness and a native 1280 x 800 WXGA resolution, it delivers bright, clear and detailed visuals in both dim and well-lit environments. Its 0.65-inch WXGA DLP projection system supports up to 1.07 billion display colors for vivid presentation content.
Powered by 3rd generation LED technology, the LS510WP provides a maintenance-free light source life of up to 30,000 hours. The lamp-free design eliminates mercury lamp replacement, while instant power on/off, vertical keystone correction, 1.1x optical zoom and 360° tilt-angle projection provide convenient operation and installation flexibility.
Product Specifications
| ViewSonic LS510WP Specifications | |
|---|---|
| Brand | ViewSonic |
| Model | LS510WP |
| Projector Type | WXGA LED Projector |
| Projection System | 0.65-inch WXGA DLP |
| Native Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Brightness | 4200 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colors | 1.07 Billion Colors |
| Light Source Type | LED |
| Light Source Life | Up to 30,000 Hours |
| Lens | F=2.56–2.68, f=22–24.1 mm |
| Projection Offset | 100% ±5% |
| Throw Ratio | 1.55–1.70 |
| Optical Zoom | 1.1x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30–300 Inches |
| Throw Distance | 1.0–10.98 m |
| 100-Inch Projection | Approximately 3.34 m |
| Keystone Correction | Vertical ±40° |
| Projection Feature | 360° Tilt-Angle Projection |
| Resolution Support | VGA 640 x 480 to Full HD 1920 x 1080 |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

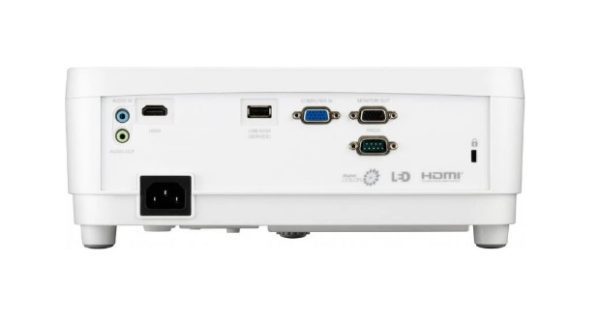

| HDMI | 1 x HDMI 1.4 / HDCP 1.4 |
| Computer Input | 1 x Computer In |
| Audio Input | 1 x 3.5 mm Audio In |
| Monitor Output | 1 x Monitor Out |
| Audio Output | 1 x 3.5 mm Audio Out |
| USB Type-A | 5V/2A Power + Service |
| Speaker | 2W |
| Control | RS232 |
| Input Lag | 16 ms |
| Noise Level | 34 dB Normal / 28 dB Eco |
| Power Consumption | 240W Normal / <0.5W Standby |
| Operating Temperature | 0–40°C |
| Dimensions | 293 x 221 x 115 mm |
| Net Weight | 2.65 kg |
About This Projector
- High-brightness WXGA LED projector designed for business and education environments.
- 4200 ANSI lumens brightness for clear images in meeting rooms and classrooms.
- 3rd generation LED technology provides a lamp-free and mercury-free projection solution.
- Up to 30,000 hours of LED light-source life for reduced maintenance requirements.
- Wide color gamut helps deliver bright and vivid presentation visuals.
- IP5X sealed optical engine helps protect the optical system from dust.
- Supports 24/7 operation for applications requiring extended projector use.
Key Features of ViewSonic LS510WP
- 4200 ANSI Lumens: Delivers bright and clear images for business, classroom and office presentations.
- WXGA Resolution: Provides 1280 x 800 native resolution with a 16:10 aspect ratio.
- 3rd Generation LED Technology: Provides a long-lasting, mercury-free light source with up to 30,000 hours of life.
- 1.1x Optical Zoom: Provides installation flexibility for different room layouts.
- 300-Inch Large Screen: Supports projection sizes from 30 to 300 inches.
- Vertical Keystone Correction: Up to ±40° correction helps align the projected image.
- 360° Projection: Allows the projector to be tilted for projection onto walls, ceilings or floors.
- Instant Power On/Off: Enables quick startup and shutdown without lengthy cooling periods.
- USB 5V/2A Power: Can provide power to compatible HDMI wireless presentation devices.
- 24/7 Operation: Designed for continuous-use environments.
Performance & Productivity
The ViewSonic LS510WP combines 4200 ANSI lumens brightness with WXGA resolution to deliver highly visible presentations, documents, charts and multimedia content. Its DLP projection system and 3,000,000:1 contrast ratio help produce bright and detailed images for professional presentation environments.
The lamp-free LED design provides instant power on/off, low maintenance and up to 30,000 hours of light-source life. With 1.1x optical zoom, vertical keystone correction and 360° projection capability, the LS510WP can be positioned flexibly for different business and classroom applications.
Best Suitable For
- Business and corporate presentations
- Office meeting rooms
- Classrooms and educational institutions
- Training rooms and conference rooms
- Schools and universities
- Professional presentations
- Boardrooms and small-to-medium meeting spaces
- Continuous-use business environments
- Multimedia presentation applications
Why Choose ViewSonic LS510WP?
- 4200 ANSI lumens brightness for clear presentations in various lighting conditions.
- WXGA 1280 x 800 native resolution with 16:10 aspect ratio.
- Long-lasting LED light source with up to 30,000 hours of life.
- Mercury-free, lamp-free design for reduced maintenance.
- 1.1x optical zoom for flexible installation.
- Vertical ±40° keystone correction for easier image alignment.
- 360° tilt-angle projection for versatile installation.
- IP5X sealed optical engine for enhanced dust protection.
- 24/7 operation support for demanding business and education applications.
- HDMI, VGA/Computer In, monitor out, audio and RS232 connectivity.
ViewSonic LS510WP – Reliable WXGA LED Presentation Solution
The ViewSonic LS510WP is a professional WXGA LED projector designed for business, classroom and office presentation needs. With 4200 ANSI lumens, 1280 x 800 resolution, 1.1x optical zoom, up to 300-inch projection, 30,000-hour LED life and flexible 360° projection, it provides a bright, reliable and low-maintenance solution for modern presentation environments.
