Description

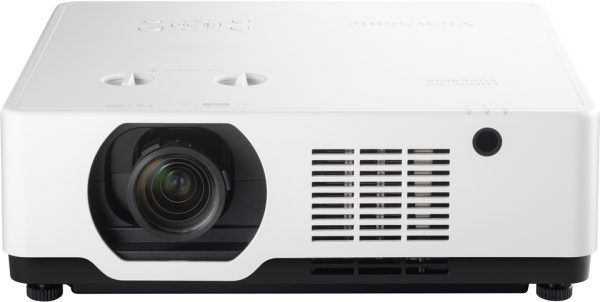

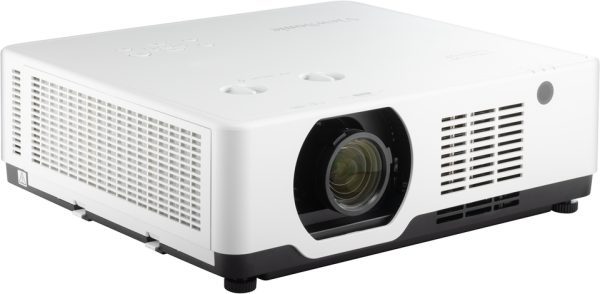

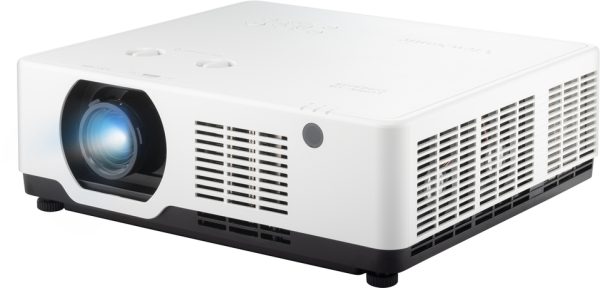

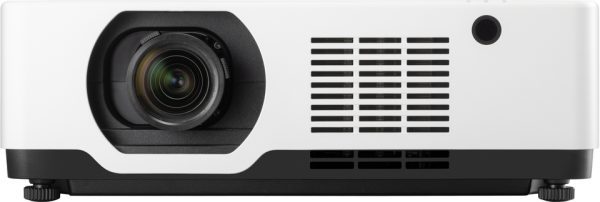

ViewSonic LSC600WU WUXGA Laser Projector for Business, Education & Professional Presentation – Full Product Details
The ViewSonic LSC600WU is a high-brightness WUXGA laser installation projector designed for business, education, professional presentations and large-space applications. Featuring 6000 ANSI lumens, native 1920 x 1200 WUXGA resolution and a high 3,000,000:1 contrast ratio, it delivers bright, detailed images for boardrooms, lecture halls, galleries, simulation environments and other professional spaces.
Powered by 2nd generation Laser Phosphor technology and a 3LCD optical system, the LSC600WU offers up to 20,000 hours of light-source life in Normal mode and 30,000 hours in SuperEco mode. Its 1.6x optical zoom, horizontal and vertical lens shift, keystone correction and 360° projection provide flexible installation options. It also supports a 21:9 aspect ratio for Microsoft Teams Rooms, making it suitable for modern hybrid meeting environments.
Product Specifications
| ViewSonic LSC600WU Specifications | |
|---|---|
| Model | LSC600WU |
| Projection System | 3LCD, 3 x 0.64″ with MLA |
| Native Resolution | 1920 x 1200 WUXGA |
| Brightness | 6000 ANSI Lumens |
| Center Lumens | 6500 Lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colors | 1.07 Billion Colors |
| Light Source | Laser Phosphor |
| Light Source Life | 20,000 Hours Normal / 30,000 Hours SuperEco |
| Lens | F=1.58–2.02, f=15.3–24.6 mm |
| Projection Offset | 0% ±5% |
| Throw Ratio | 1.08–1.76 |
| Optical Zoom | 1.6x |
| Digital Zoom | 1.0x–4.0x |
| Image Size | 30–300 Inches |
| Throw Distance | 0.70–11.37 m; 100″ at 2.33 m |
| Keystone Correction | Horizontal ±30° / Vertical ±30° |
| Auto Keystone | Vertical ±30° |
| Vertical Lens Shift | +45% to 0% |
| Horizontal Lens Shift | +21% to -21% |
| Projection | 360° Projection |
| Aspect Ratio | Supports 21:9 for Microsoft Teams Rooms |
| Resolution Support | VGA 640 x 480 up to 4K 3840 x 2160 |
| HDTV Compatibility | 480i/p, 576i/p, 720p, 1080i/p, 2160p |

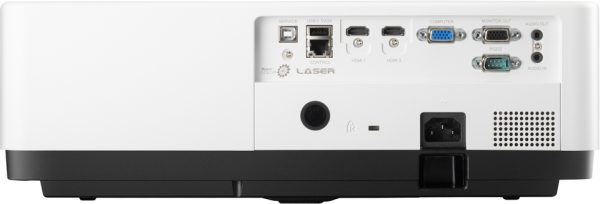

| HDMI | 2 x HDMI 1.4 / HDCP 1.4 |
| Computer Input | 1 |
| Audio Input | 3.5 mm, 1 |
| USB Type-A | 1, 5V/2A |
| Monitor Output | 1 |
| Audio Output | 3.5 mm, 1 |
| Speaker | 16W |
| LAN Control | RJ45 |
| RS232 | DB-9, 1 |
| Service Port | USB Type-B |
| Audible Noise | 35 dB Normal / 25 dB Eco |
| Input Lag | 60 ms |
| Power Consumption | 320W Normal / <0.5W Standby |
| Operating Temperature | 0–40°C |
| Dimensions | 405 x 358 x 137 mm |
| Net Weight | 7.9 kg |
About This Projector
- High-brightness 6000 ANSI lumens output for large venues and bright environments.
- Native WUXGA 1920 x 1200 resolution for detailed presentations and professional content.
- 3LCD technology with MLA delivers bright and vivid projected images.
- Laser Phosphor technology provides up to 30,000 hours of light-source life in Eco mode.
- Supports image sizes up to 300 inches for large-screen presentations.
- Centralized LAN control simplifies projector management across professional environments.
Key Features of ViewSonic LSC600WU
- 6000 ANSI Lumens high-brightness laser projection
- Native WUXGA 1920 x 1200 resolution
- 3LCD 3 x 0.64″ optical system with MLA
- 1.6x optical zoom for flexible installation
- Horizontal and vertical lens shift
- Horizontal and vertical keystone correction
- Up to 300-inch ultra-large image size
- 360° projection capability
- 21:9 aspect ratio support for Microsoft Teams Rooms
- 4K input signal support
- Dual HDMI connectivity
- LAN and RS232 professional control
- Up to 30,000-hour laser light-source life
Performance & Productivity
The LSC600WU combines 6000 ANSI lumens with WUXGA resolution to provide bright, sharp and detailed visuals for professional presentations, teaching content, meeting-room collaboration and large-venue applications. Its support for screens up to 300 inches makes it suitable for environments where a large image is required.
The projector is designed for installation flexibility with a 1.6x optical zoom, horizontal and vertical lens shift, automatic and manual keystone correction and 360° projection. Centralized LAN control allows IT teams and administrators to manage the projector efficiently within professional device networks.
Best Suitable For
- Corporate boardrooms and conference rooms
- Educational institutions and lecture halls
- Professional training and presentation rooms
- Galleries and exhibition spaces
- Simulation and experience venues
- Large meeting and collaboration spaces
- Microsoft Teams Rooms and hybrid meeting environments
- Professional fixed-installation applications
Why Choose ViewSonic LSC600WU?
- High Brightness: 6000 ANSI lumens provides strong visibility in large and well-lit environments.
- WUXGA Detail: 1920 x 1200 native resolution provides additional vertical workspace for business and educational content.
- Installation Flexibility: 1.6x optical zoom and H/V lens shift help simplify projector positioning.
- Large Screen Projection: Supports image sizes up to 300 inches for immersive presentations.
- Modern Collaboration: 21:9 support is optimized for Microsoft Teams Rooms front-row applications.
- Long Laser Life: Laser Phosphor technology delivers up to 30,000 hours in SuperEco mode.
- Centralized Management: LAN control supports efficient projector management in professional installations.
ViewSonic LSC600WU – Professional WUXGA Laser Presentation Solution
The ViewSonic LSC600WU is a professional WUXGA laser projector designed for business, education and large presentation environments. With 6000 ANSI lumens, 3LCD technology, 1.6x optical zoom, H/V lens shift, 300-inch projection, 21:9 Teams Rooms support and centralized LAN control, it provides a versatile solution for modern meeting rooms, lecture halls, galleries, simulation venues and professional installations.
