ViewSonic LSD600W WXGA Laser Projector for Business, Education & Large Rooms – Full Product Details

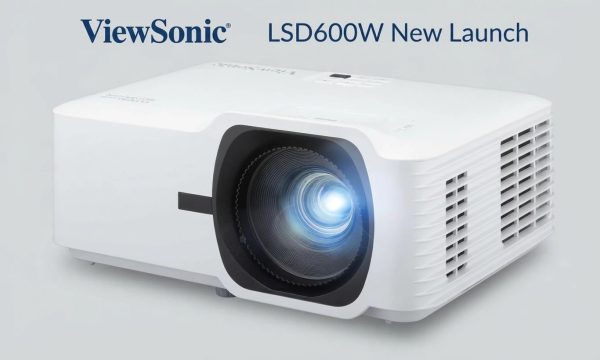

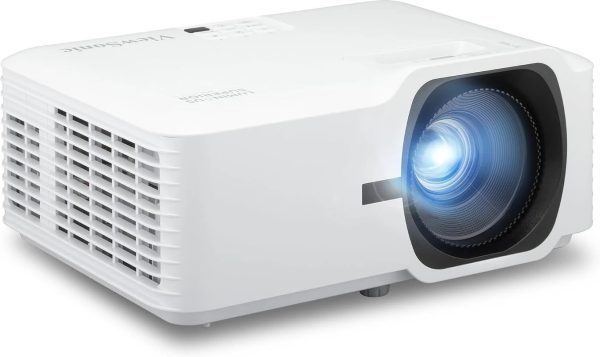

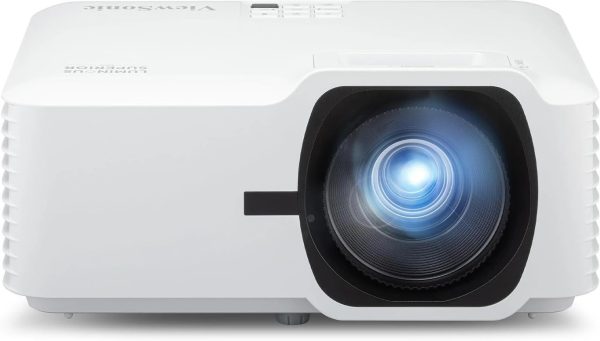

The ViewSonic LSD600W is a high-brightness WXGA laser installation projector designed for business, education, corporate and large-room presentation environments. With 6000 ANSI lumens brightness and a native 1280 x 800 WXGA resolution, it delivers bright, clear and detailed visuals for boardrooms, classrooms, auditoriums, public venues and other expansive spaces.
Powered by 3rd generation laser phosphor technology, the LSD600W provides up to 30,000 hours of light-source life in Eco mode. Its 1.3x optical zoom, horizontal and vertical keystone correction, 4-corner adjustment, 360° projection and portrait mode provide flexible installation options, while the DLP-based optical system delivers consistent image performance for professional presentations.
Product Specifications
| ViewSonic LSD600W Specifications | |
|---|---|
| Brand | ViewSonic |
| Model | LSD600W |
| Projector Type | WXGA Laser Installation Projector |
| Projection System | 0.65-inch WXGA DLP |
| Native Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Brightness | 6000 ANSI Lumens |
| Center Lumens | 6600 Lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colors | 1.07 Billion Colors |
| Light Source | Laser Phosphor |
| Light Source Life | 20,000 Hours Normal / 30,000 Hours Eco |
| Lens | F=2.43–2.78, f=16.90–21.61 mm |
| Throw Ratio | 1.18–1.54 |
| Optical Zoom | 1.3x |
| Digital Zoom | 0.8x–2.0x |
| Projection Size | 30–300 Inches |
| Throw Distance | 0.76–9.95 m |
| 100-Inch Projection | Approximately 2.54 m |
| Projection Offset | 124% ±10% |
| Keystone Correction | Horizontal ±30° / Vertical ±30° |
| Projection Features | 360° Projection / 90° Portrait Mode / 4-Corner Adjustment |
| Resolution Support | VGA 640 x 480 to WUXGA RB 1920 x 1200 |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

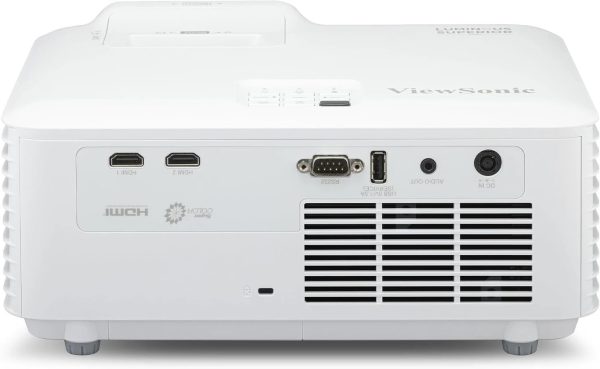

| HDMI | 2 x HDMI 1.4 / HDCP 1.4 |
| Audio Output | 3.5 mm Audio Out |
| Speaker | 15W |
| USB | USB Type-A 5V/1.5A |
| Control | RS232 / USB Service |
| Input Lag | 25 ms |
| Noise Level | 32 dB Normal / 27 dB Eco |
| Power Consumption | 163W Normal / <0.5W Standby |
| Operating Temperature | 0–40°C |
| Dimensions | 286 x 216 x 129 mm |
| Weight | 2.9 kg |
About This Projector
- High-brightness WXGA laser installation projector for professional environments.
- 6000 ANSI lumens brightness for clear viewing in large and well-lit rooms.
- 0.65-inch DLP DMD technology for strong native contrast and detailed images.
- 3rd generation laser phosphor technology with up to 30,000 hours of light-source life.
- Supports projection sizes from 30 inches up to 300 inches.
- IP6X-rated sealed optical engine helps reduce dust-related maintenance.
- Designed for extended-use environments with support for 24/7 operation.
Key Features of ViewSonic LSD600W
- 6000 ANSI Lumens: Produces bright and visible images for large rooms, auditoriums and professional venues.
- WXGA Resolution: Delivers 1280 x 800 resolution with a 16:10 aspect ratio.
- Laser Phosphor Technology: Provides up to 30,000 hours of light-source life in Eco mode.
- 1.3x Optical Zoom: Allows flexible projector positioning during installation.
- 300-Inch Large Screen: Supports expansive projection for large meeting and presentation spaces.
- High Contrast: The 0.65-inch DLP DMD system provides a 3,000,000:1 dynamic contrast ratio.
- Flexible Installation: Includes horizontal and vertical keystone correction and 4-corner adjustment.
- 360° Projection: Enables projection from different installation orientations.
- 90° Portrait Mode: Supports vertical projection applications and creative installations.
- 24/7 Operation: Designed for environments requiring continuous projection operation.
Performance & Productivity
The ViewSonic LSD600W combines 6000 ANSI lumens brightness with WXGA resolution to deliver clear and highly visible presentations in boardrooms, classrooms, auditoriums and large public spaces. Its DLP projection technology and high contrast ratio help maintain image clarity and legibility across large screens.
The projector provides installation flexibility through its 1.3x optical zoom, H/V keystone correction, 4-corner adjustment, 360° projection and portrait mode. The lamp-free laser design provides instant power operation and long-term reliability, while dual HDMI connectivity supports a wide range of presentation and multimedia sources.
Best Suitable For
- Corporate boardrooms and large conference rooms
- Educational institutions and universities
- Large classrooms and lecture halls
- Auditoriums and training centers
- Business and professional presentations
- Public venues and event spaces
- Retail stores, malls and museums
- Professional AV and installation environments
- Large-screen digital presentation applications
Why Choose ViewSonic LSD600W?
- 6000 ANSI lumens brightness for large and well-lit environments.
- WXGA 1280 x 800 native resolution with 16:10 aspect ratio.
- Long-lasting laser phosphor light source with up to 30,000 hours Eco life.
- 1.3x optical zoom for flexible installation positioning.
- Up to 300-inch projection size for large-room applications.
- H/V keystone and 4-corner adjustment for easier image alignment.
- 360° projection and 90° portrait mode for specialized installations.
- IP6X-rated sealed optical engine for reduced maintenance.
- 15W built-in speaker and dual HDMI connectivity.
- Designed for continuous 24/7 operation in demanding environments.
