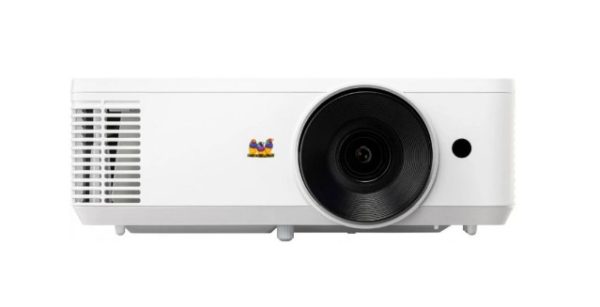

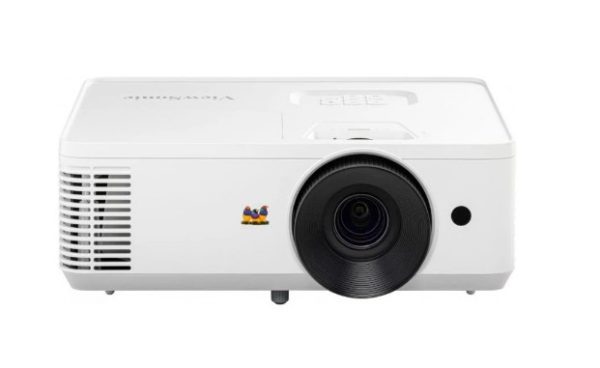

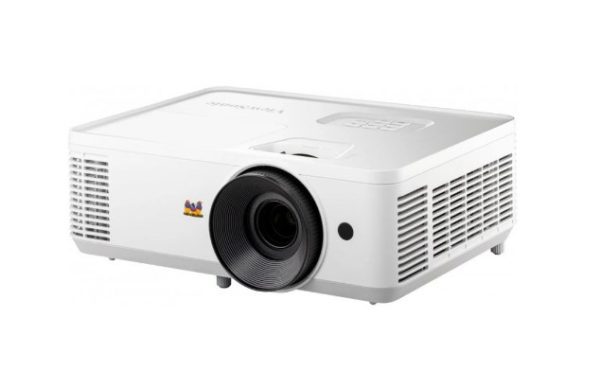

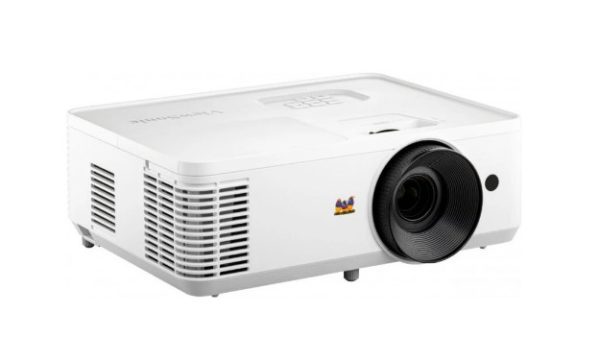

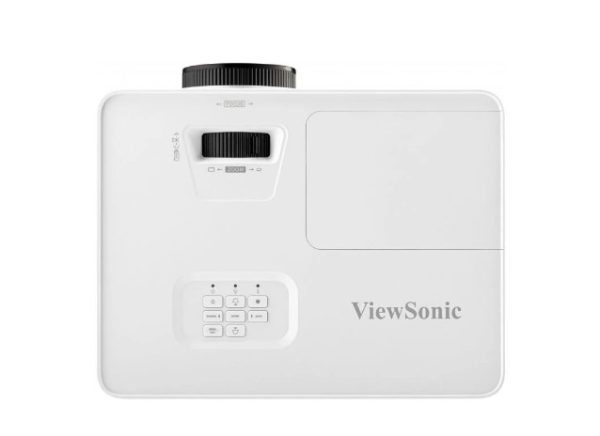

ViewSonic PA700X XGA High Brightness Projector – Full Product Details
The ViewSonic PA700X is a high-brightness XGA business and education projector designed for classrooms, offices, meeting rooms, conference halls and professional presentations. With 4,500 ANSI Lumens brightness and native 1024 x 768 XGA resolution, it delivers clear and vibrant visuals even in environments with significant ambient light.
Featuring a 0.55-inch XGA DLP projection system, 1.07 billion display colors and a 12,500:1 contrast ratio with SuperEco Mode, the PA700X provides detailed presentation performance. Its dual HDMI ports allow convenient connection of multiple multimedia devices, while the USB Type-A port can supply power to compatible HDMI wireless dongles.
Product Specifications
| ViewSonic PA700X Specifications | |
|---|---|
| Model | PA700X |
| Projection System | 0.55-inch XGA DLP |
| Native Resolution | 1024 x 768 XGA |
| Aspect Ratio | 4:3 |
| Brightness | 4500 ANSI Lumens |
| Contrast Ratio | 12,500:1 with SuperEco Mode |
| Display Colors | 1.07 Billion Colors |
| Light Source | 240W UHP Lamp |
| Lamp Life | 4000 Hours Normal / 12000 Hours SuperEco |
| Lens | F=2.42–2.53, f=21.85–24.01mm |
| Projection Offset | 130% ±10% |
| Throw Ratio | 1.94–2.16 |
| Optical Zoom | 1.1x |
| Digital Zoom | 0.8x–2.0x |
| Projection Size | 30–300 inches |
| Throw Distance | 1.18–13.17m; 100-inch screen at 3.94m |
| Keystone Correction | Vertical ±40° |
| Auto Keystone | Vertical ±40° |
| Resolution Support | VGA 640×480 to Full HD 1920×1080 |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

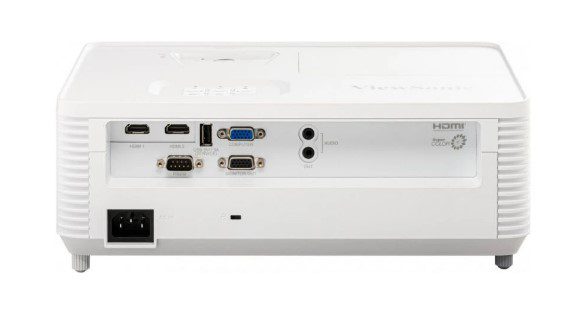

| HDMI | 2 x HDMI 1.4, HDCP 1.4 |
| Computer Input | 1 x Computer In, shared with Component |
| Audio Input | 1 x 3.5mm Audio In |
| Monitor Output | 1 |
| Audio Output | 1 x 3.5mm Audio Out |
| USB | USB Type-A, 5V/1.5A |
| Speaker | 3W |
| Control | RS232 DB-9 |
| Noise Level | 34dB Normal / 25dB Eco |
| Input Lag | 33.2ms |
| Power Consumption | 295W Normal / Less than 0.5W Standby |
| Power Supply | 100–240V ±10%, 50/60Hz |
| Operating Temperature | 0–40°C |
| Dimensions | 309 x 234 x 115 mm |
| Net Weight | 2.7 kg |
| Standard Accessories | Power Cord, VGA Cable, Remote Control, Quick Start Guide |
About This Projector
- High Brightness: 4500 ANSI Lumens delivers clear and visible images in classrooms, offices and meeting rooms with ambient light.
- XGA Resolution: Native 1024 x 768 resolution with a traditional 4:3 aspect ratio for presentations and business documents.
- Large Screen Projection: Supports projection sizes from 30 to 300 inches.
- SuperColor Technology: Provides vivid and natural-looking colors with support for up to 1.07 billion colors.
- Dual HDMI Connectivity: Connect multiple HDMI multimedia sources and switch between them conveniently.
- USB Type-A Power: 5V/1.5A output can power compatible HDMI wireless presentation dongles.
Key Features of ViewSonic PA700X
- 4500 ANSI Lumens high brightness
- 1024 x 768 native XGA resolution
- 0.55-inch XGA DLP projection system
- 12,500:1 contrast ratio with SuperEco Mode
- 1.07 billion display colors
- Up to 300-inch large-screen projection
- 1.1x optical zoom
- 0.8x–2.0x digital zoom
- Vertical ±40° keystone correction
- Automatic vertical keystone correction
- 2 x HDMI 1.4 with HDCP 1.4
- USB Type-A 5V/1.5A power output
- 3W built-in speaker
- RS232 control connectivity
- USB software update support
Performance & Productivity
The ViewSonic PA700X combines 4500 ANSI Lumens brightness with XGA resolution to produce clear presentations, spreadsheets, documents, charts and educational content in bright environments. Its ability to project images up to 300 inches makes it suitable for classrooms, boardrooms, conference halls and larger presentation spaces.
The projector provides flexible connectivity through dual HDMI ports, VGA, audio input/output and USB Type-A. Its 1.1x optical zoom and vertical ±40° keystone correction help simplify installation and image alignment. SuperEco Mode extends the lamp life up to 12,000 hours for longer-term presentation use.
Best Suitable For
- Classrooms and educational institutions
- Corporate offices and boardrooms
- Business meetings and presentations
- Training rooms and seminar halls
- Conference rooms and auditoriums
- Professional presentation environments
- Bright ambient-light environments
Why Choose ViewSonic PA700X?
- Bright Presentation: 4500 ANSI Lumens provides strong visibility in rooms with ambient light.
- Reliable XGA Performance: 1024 x 768 resolution is well suited to business documents, presentations and classroom content.
- Flexible Connectivity: Dual HDMI inputs allow multiple multimedia devices to remain connected.
- Large Display Capability: Supports screen sizes up to 300 inches.
- Easy Setup: 1.1x optical zoom and ±40° vertical keystone correction make positioning more convenient.
- Longer Lamp Life: SuperEco Mode supports up to 12,000 hours of lamp life.
- Compact Design: The 2.7 kg projector is practical for office and education environments.
ViewSonic PA700X – High Brightness XGA Business & Education Projector
The ViewSonic PA700X is a professional XGA projector designed for offices, classrooms, meeting rooms and business presentations. With 4500 ANSI Lumens, 1024 x 768 XGA resolution, dual HDMI connectivity, 300-inch projection capability, SuperColor technology and vertical keystone correction, it provides a practical large-screen presentation solution for bright business and education environments.
