Description
“`html

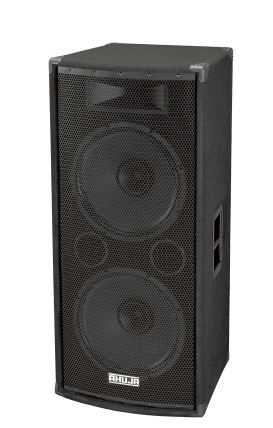

Ahuja SRX-500 Professional PA Speaker
The Ahuja SRX-500 Professional PA Speaker is a high-power, two-way passive loudspeaker designed for professional sound reinforcement, stage performances, DJ setups and large events. With a 400W RMS power rating and 800W programme power handling, it features two 15-inch full-range dual-cone speakers and a dynamic horn high-frequency driver for powerful sound output and clear audio reproduction.
The speaker is housed in an acoustically treated, trapezoidal bass reflex cabinet with a durable carpet-covered finish. Its heavy-duty handles support convenient transportation, while the strong steel front grille protects the speaker drivers. A free-flow flared port supports low-frequency performance, making the SRX-500 suitable for auditoriums, entertainment venues and professional PA systems.
Key Features
- 400W RMS Power Rating: Suitable for professional sound reinforcement and demanding PA applications.
- Dual 15-Inch Speakers: Two full-range dual-cone drivers deliver powerful sound for music and speech.
- Dynamic Horn Driver: Supports high-frequency reproduction and sound intelligibility.
- Two-Way Speaker Design: Designed for balanced audio output across a wide frequency range.
- Wide Frequency Response: Covers 50Hz to 20kHz.
- High Sensitivity: Rated at 101dB SPL at 1W/1m for efficient sound output.
- 8-Ohm Impedance: Designed to work with a compatible external power amplifier.
- Bass Reflex Enclosure: Acoustically treated trapezoidal cabinet with a free-flow flared port.
- Protective Steel Grille: Helps safeguard the drivers during use and transportation.
- Professional Connectivity: Features Speakon connectors and a terminal strip.
- Portable Construction: Heavy-duty handles support handling and setup at event locations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ahuja |
| Model | SRX-500 |
| Product Type | Passive PA Speaker System |
| Power Rating | 400W RMS / 800W Programme |
| Configuration | Two-Way |
| Low-Frequency Drivers | 2 × 381mm (15-inch) full-range dual-cone speakers |
| Voice Coil Diameter | 50.8mm (2 inches) |
| High-Frequency Unit | Dynamic horn |
| Horn Dimensions | 101.6 × 254mm (4 × 10 inches) |
| Frequency Response | 50Hz–20kHz |
| Sensitivity | 101dB SPL at 1W/1m |
| Maximum Rated SPL | 127dB |
| Nominal Impedance | 8 ohms |
| Crossover Frequency | 6kHz |
| Enclosure Type | Trapezoidal bass reflex enclosure |
| Cabinet Finish | Acoustically treated, carpet covered |
| Port Design | Free-flow flared port |
| Input Connectors | Speakon and terminal strip |
| Dimensions | W510 × H1135 × D505mm |
| Weight | 49.50kg |
Applications
- Live stage performances and concerts
- DJ setups and music programmes
- Auditoriums and entertainment venues
- Indoor and outdoor sound reinforcement
- Professional PA systems for events and functions
- Commercial audio and public-address installations
Why Choose the Ahuja SRX-500?
The Ahuja SRX-500 combines dual 15-inch speakers, a dynamic horn driver and 400W RMS power handling in a rugged professional cabinet. Its high sensitivity, protective steel grille and practical carrying handles make it a suitable option for DJs, event organisers, auditorium installations and professional sound technicians.
Amplifier Compatibility
The Ahuja SRX-500 is a passive 8-ohm speaker and requires a compatible external power amplifier. Select an amplifier appropriate for the speaker’s power rating and impedance. Use suitable speaker cables and follow the amplifier manufacturer’s recommendations for safe connection and operation.
Ahuja SRX-500 400W RMS Professional Two-Way Passive PA Speaker with Dual 15-Inch Full-Range Drivers, Dynamic Horn, 8-Ohm Impedance and Bass Reflex Cabinet for DJs, Stage and Events
“`
